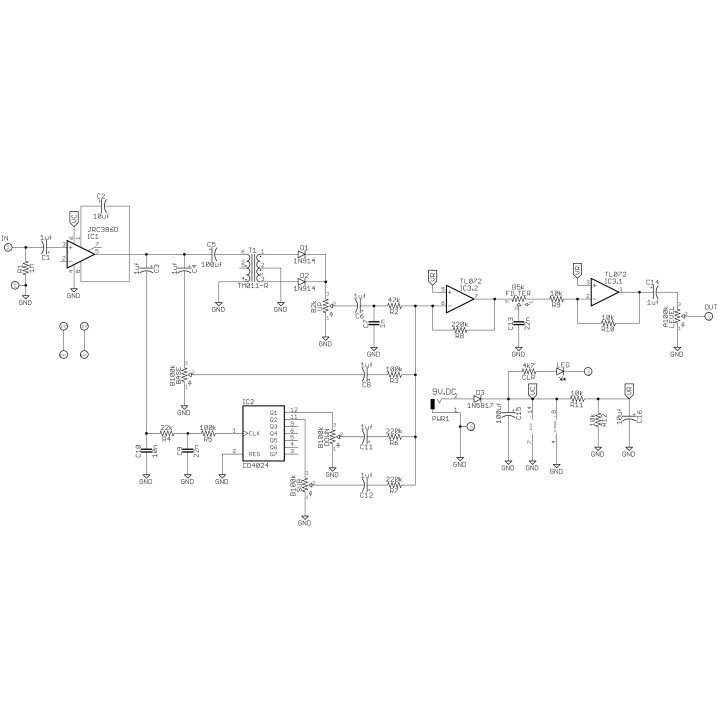

DIRT BOT - Based on the EQD® BIT COMMANDER

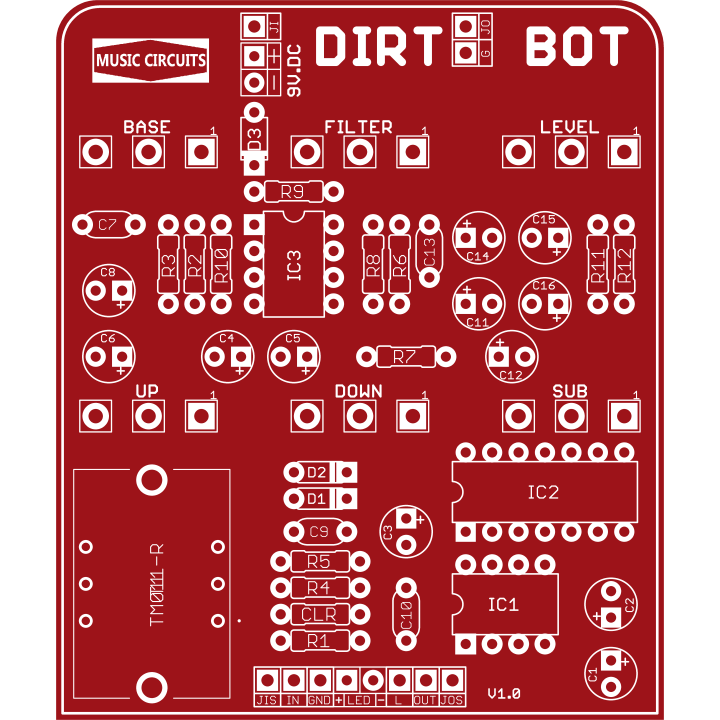

This is a blank PCB to build the Dirt Bot that is based on theBased on the EQD® BIT COMMANDER

REVISION 01.09.2022

EFFECT TYPE: OCTAVER/SYNTH

BOM: BIT COMMANDER (DIRT BOT)

Capacitors

C1 1uf
C2 10uf
C3 1uf
C4 1uf
C5 100uf
C6 1uf
C7 1n
C8 1uf
C9 22n
C10 10n
C11 1uf
C12 1uf
C13 22n
C14 1uf
C15 100uf
C16 10uf

Diodes

D1 1N914
D2 1N914
D3 1N5817

IC's

IC1 JRC386D
IC2 CD4024
IC3 TL072

Resistors

R1 1M
R2 47k
R3 100k
R4 22k
R5 100k
R6 220k
R7 220k
R8 220k
R9 10k
R10 10k
R11 10k
R12 10k
CLR 4k7

Pots

UP B2k
LEVEL A100k
SUB B100k
DOWN B100k
FILTER B5k
BASE B100k

Transformer

TM011-R (Mouser usually stock these and sometimes they are available on my Exotic Parts list)
