FUZZY SHEEP - Based on the ROLAND® BEE BAA

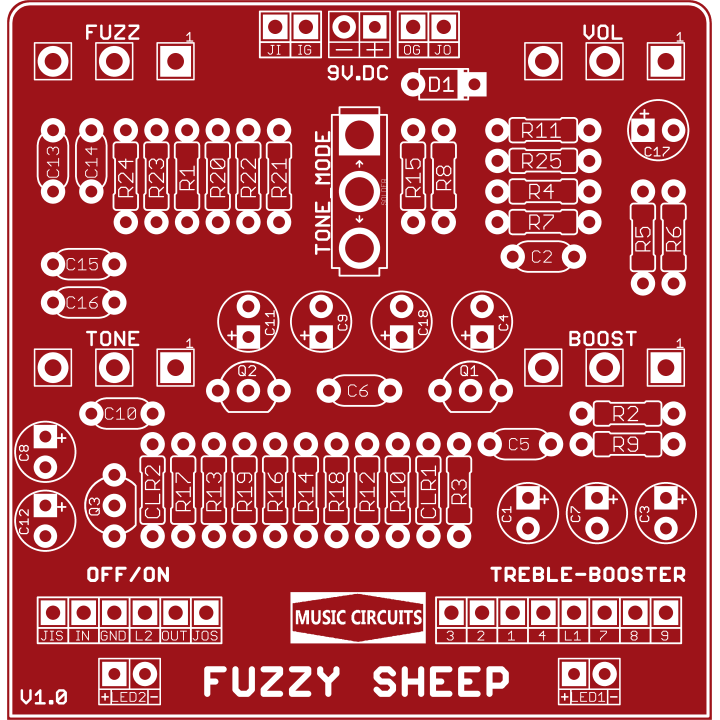

This is a blank board to build the pedal Fuzzy Sheep. Board only, no components included

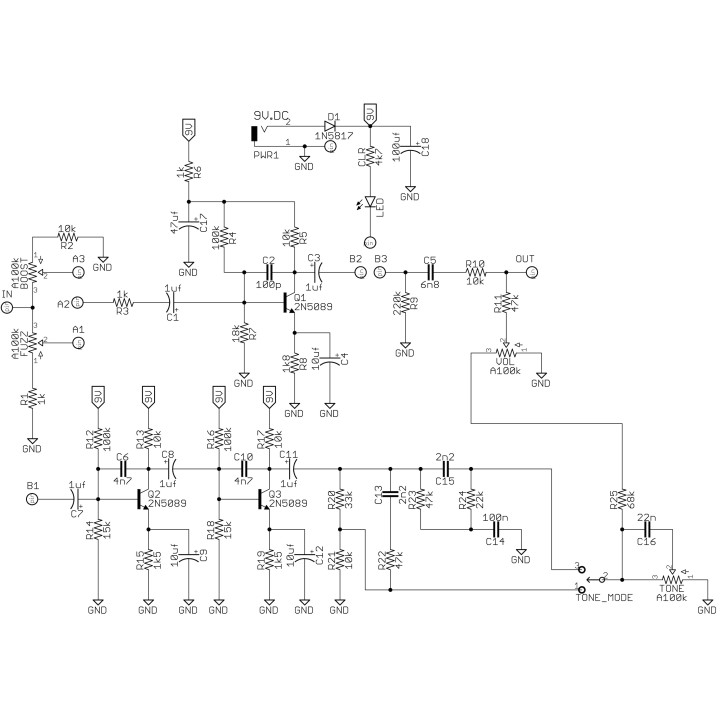

BOM: ROLAND BEE BAA (FUZZY SHEEP)

Capacitors

C1 1uf
C2 100p
C3 1uf
C4 10uf
C5 6n8
C6 4n7
C7 1uf
C8 1uf
C9 10uf
C10 4n7
C11 1uf
C12 10uf
C13 2n2
C14 100n
C15 2n2
C16 22n
C17 47uf
C18 100uf

Diodes

D1 1N5817

Transistors

Q1 2N5089
Q2 2N5089
Q3 2N5089

Pots

VOL A100k
TONE A100k
FUZZ A100k
BOOST A100k

Switches

SPDT on-on (mode)
Extra 3PDT for the BOOSTER

Resistors

R1 1k
R2 10k
R3 1k
R4 100k
R5 10k
R6 1k
R7 18k
R8 1k8
R9 220k
R10 10k
R11 47k
R12 100k
R13 10k
R14 15k
R15 1k5
R16 100k
R17 10k
R18 15k
R19 1k5
R20 33k
R21 10k
R22 47k
R23 47k
R24 22k
R25 68k
CLR1 4k7
CLR2 4k7
