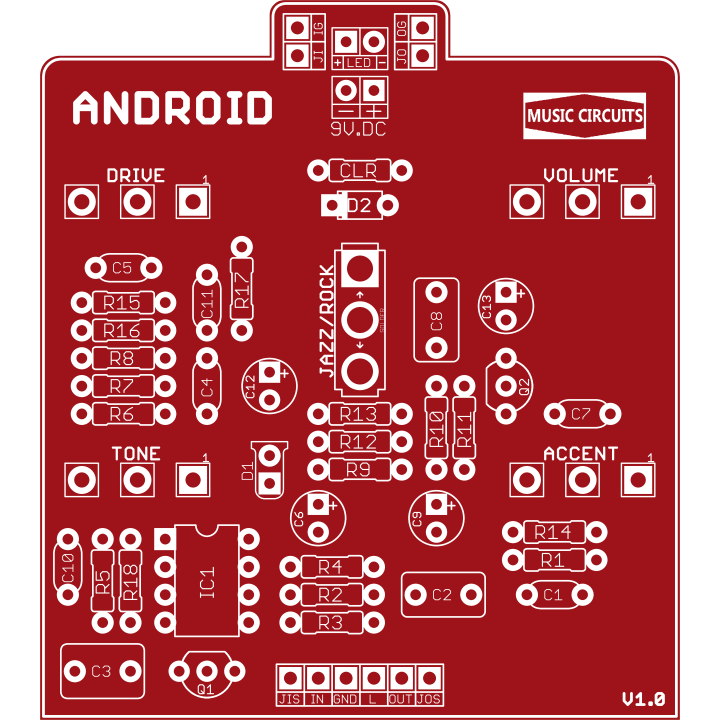

ANDROID - Based on the SHINS MUSIC® DUMBLOID

This is a blank board to build the pedal Android. Board only, no components included

BOM: SHINS MUSIC DUMBLOID (ANDROID)

Capacitors

C1 100p
C2 470n
C3 1u
C4 220n
C5 100n
C6 2u2
C7 220n
C8 470n
C9 22uf
C10 82p
C11 220n
C12 47uf
C13 47uf

Diodes

D1 3mm RED LED
D2 1N5817

IC's

IC1 OPA2134

(Others will work, JRC4558/TL072)

Transistors

Q1 BC548B
Q2 BC548B

Resistors

R1 1M
R2 100R
R3 150k
R4 10k
R5 10k
R6 1k
R7 10k
R8 220R
R9 1k
R10 1k
R11 100k
R12 10k
R13 100R
R14 10k
R15 10k
R16 1k8
R17 10k
R18 10k

Pots

TONE B20k

VOLUME B100k

DRIVE A1M
ACCENT B25k

Switch

SPDT ON-ON
