PARAMIDS (V1.0) Based on the JHS® HAUNTING MIDS REVISION 01.09.2022

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

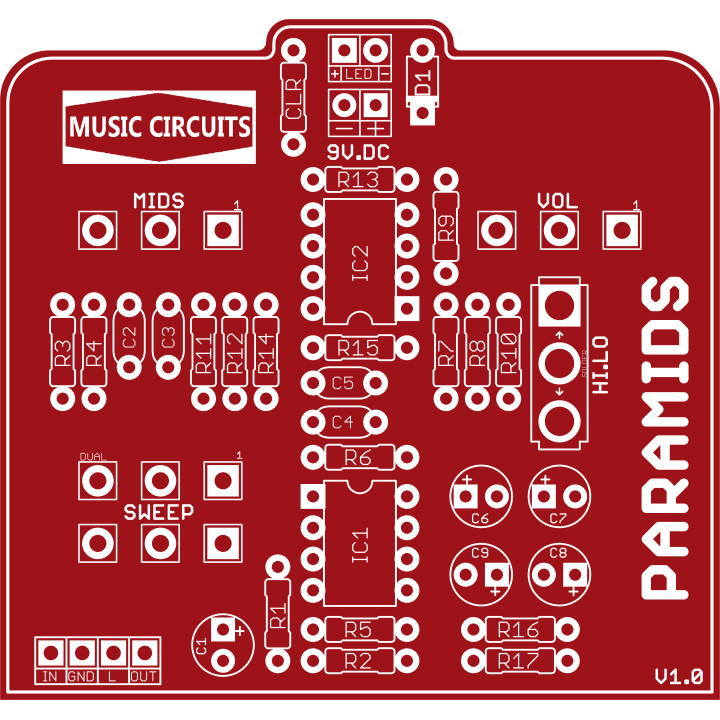

This is a blank board to build the pedal Paramids. Board only, no components included

BOM: HAUNTING MIDS (PARAMIDS)

Capacitors

C1 4u7
C2 47p
C3 10n
C4 1n5
C5 47p
C6 4u7
C7 100uf
C8 10uf
C9 10uf

Diodes

D1 1N5817

IC'S

IC1 NE5532
IC2 TL072

Resistors

R1 1M
R2 470k
R3 10k
R4 4k7
R5 5k6
R6 5k6
R7 6k8
R8 6k8
R9 3k3
R10 6k8
R11 22k
R12 22k
R13 3k3
R14 4k7
R15 4k7
R16 10k
R17 10k

Pots

SWEEP B100k DUAL
VOL B10k
MIDS B10k
