MOSHER - Based on the IBANEZ® MT-10 MOSTORTION

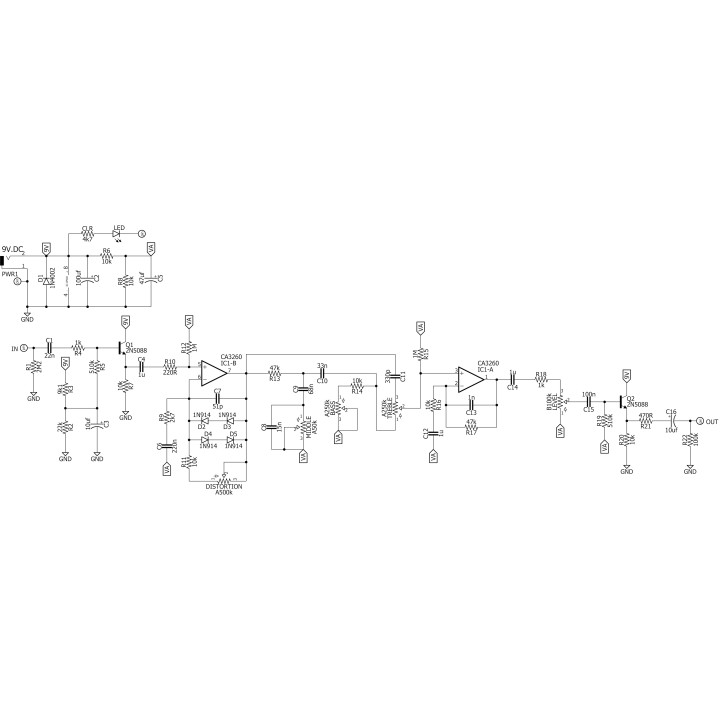

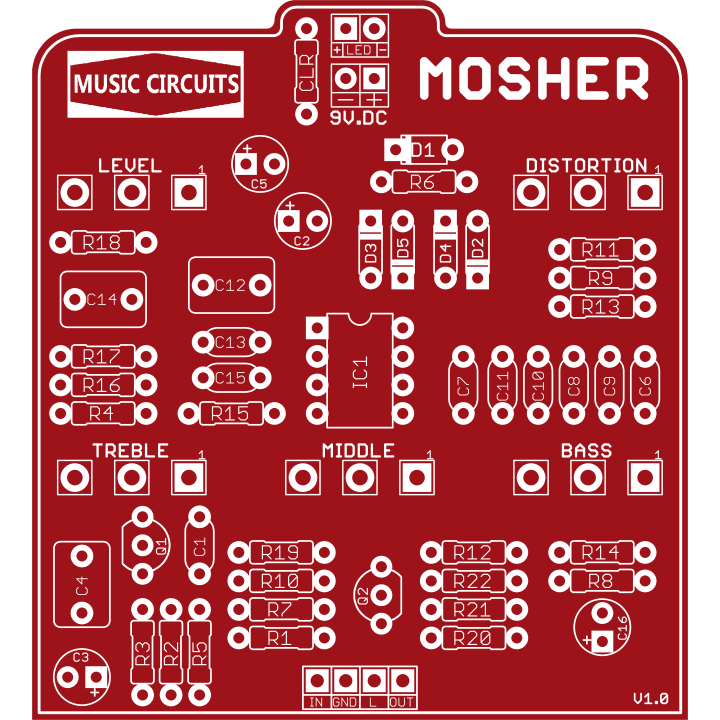

This is a blank board for building the MOSHER (V1.0) Based on the IBANEZ® MT-10 MOSTORTION REVISION 01.10.2022

BOM: MOSTORTION (MOSHER)

Capacitors
C1 22n
C2 100uf
C3 10uf
C4 1u
C5 47uf
C6 220n
C7 51p
C8 15n
C9 68n
C10 33n
C11 330p
C12 1u
C13 1n
C14 1u
C15 100n
C16 10uf

Diodes
D1 1N4002
D2 1N914
D3 1N914
D4 1N914
D5 1N914

IC’s
IC1 CA3260

Transistors
Q1 2N5088
Q2 2N5088

Pots
TREBLE A250k
LEVEL B100k
MIDDLE A50k
ISTORTION A500k
BASS A250k

Resistors
R1 2M2
R2 22k
R3 9k1
4 1k
R5 510k
R6 10k
R7 10k
R8 10k
R9 2k7
R10 220R
R11 10k
R12 1M
R13 47k
R14 10k
R15 1M
R16 10k
R17 47k
R18 1k
R19 510k
R20 10k
R21 470R
R22 100k
