• OCTAVIUS - Based on the TYCHOBRAHE® OCTAVIA
  • OCTAVIUS - Based on the TYCHOBRAHE® OCTAVIA

OCTAVIUS - Based on the TYCHOBRAHE® OCTAVIA

£9.9
No tax

OCTAVIUS (V1.0) Based on the TYCHOBRAHE® OCTAVIA REVISION 01.10.2022

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

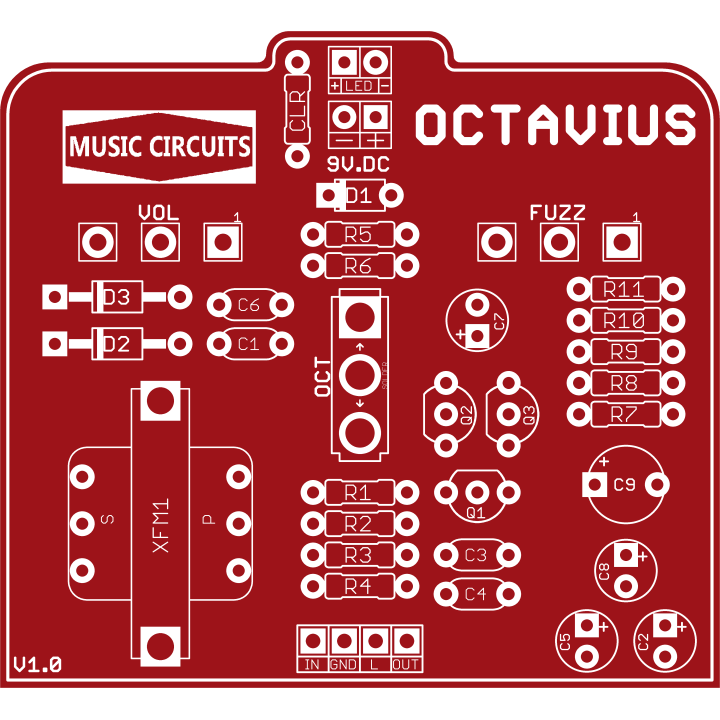

This is a blank board for building the OCTAVIUS (V1.0) Based on the TYCHOBRAHE® OCTAVIA REVISION 01.10.2022

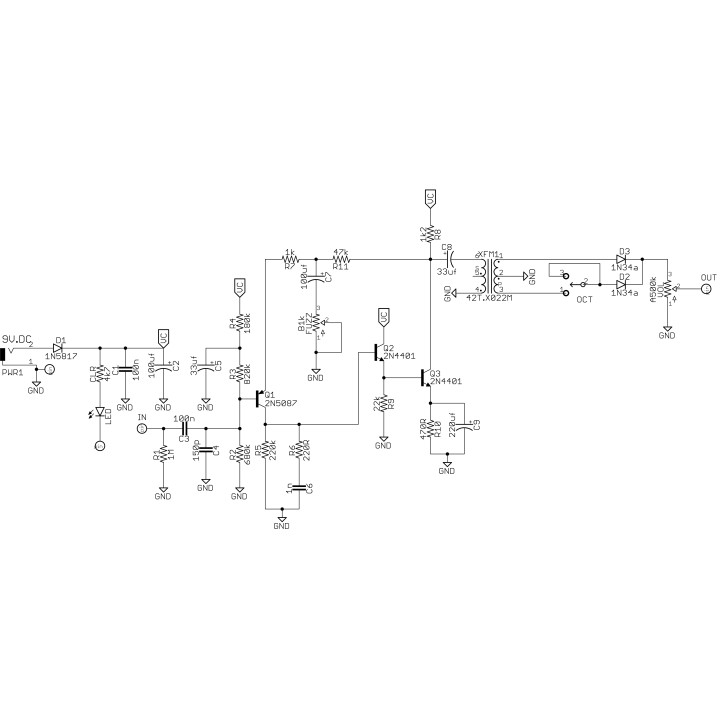

BOM: OCTAVIA (OCTAVIUS)

Capacitors
C1 100n
C2 100uf
C3 100n
C4 150p
C5 33uf
C6 1n
C7 100uf
C8 33uf
C9 220uf

Diodes
D1 1N5817
D2 1N34a
D3 1N34a

Transformer
42TM022 or TM011-R (you can find these on my exotic parts list and if not available MOUSER usually stocks them too)

Transistors
Q1 2N5087
Q2 2N4401
Q3 2N4401

Resistors
R1 1M
R2 680k
R3 820k
R4 180k
R5 220k
R6 220R
R7 1k
R8 1k2
R9 22k
R10 470R
R11 47k

Pots
VOL A500k
FUZZ B1k

Switch
SPDT on-on

  • Reference
    octaviusv1
  • In stock
    10 Items

Comments (0)

No customer reviews for the moment.
