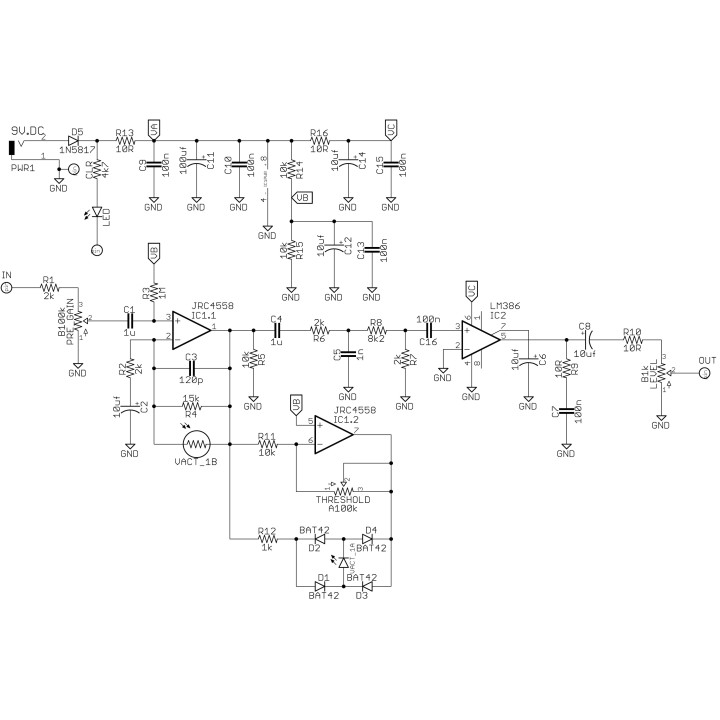

VEGAS - Based on the SCHAFFER VEGA® REPLICA

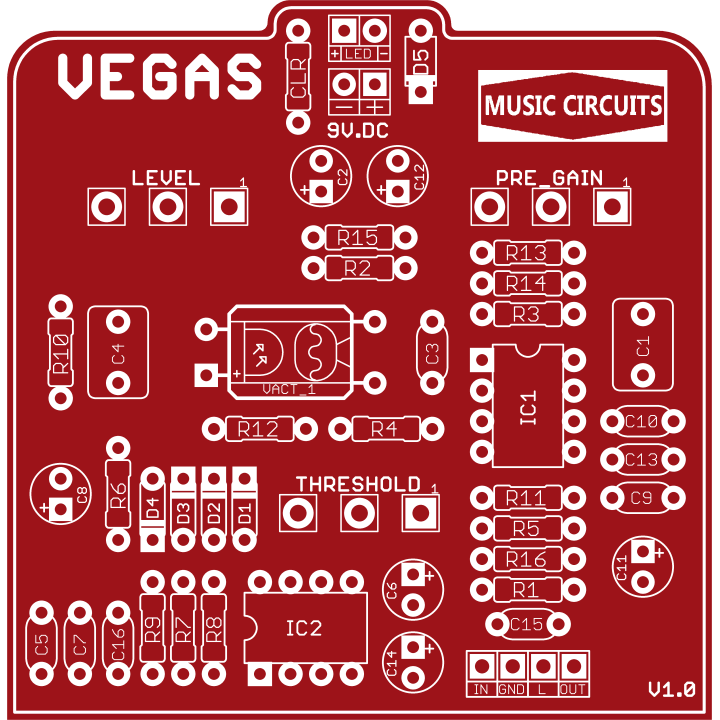

This is a board to build the pedal VEGAS Based on the SCHAFFER VEGA® REPLICA

REVISION 01.09.2022

Diodes

D1 BAT42
D2 BAT42
D3 BAT42
D4 BAT42
D5 1N5817

IC's

IC1 JRC4558
IC2 LM386

RESISTORS

R1 2k
R2 2k
R3 1M
R4 15k
R5 10k
R6 2k
R7 2k
R8 8k2
R9 10R
R10 10R
R11 10k
R12 1k
R13 10R
R14 10k
R15 10k
R16 10R

Capacitors

C1 1u
C2 10uf
C3 120p
C4 1u
C5 1n
C6 10uf
C7 100n
C8 10uf
C9 100n
C10 100n
C11 100uf
C12 10uf
C13 100n
C14 10uf
C15 100n
C16 100n

Pots

THRESHOLD A100k
PRE_GAIN B100k
