A.T.D - Based on the JHS® ANDY TIMMONS DRIVE

£9.9
No tax

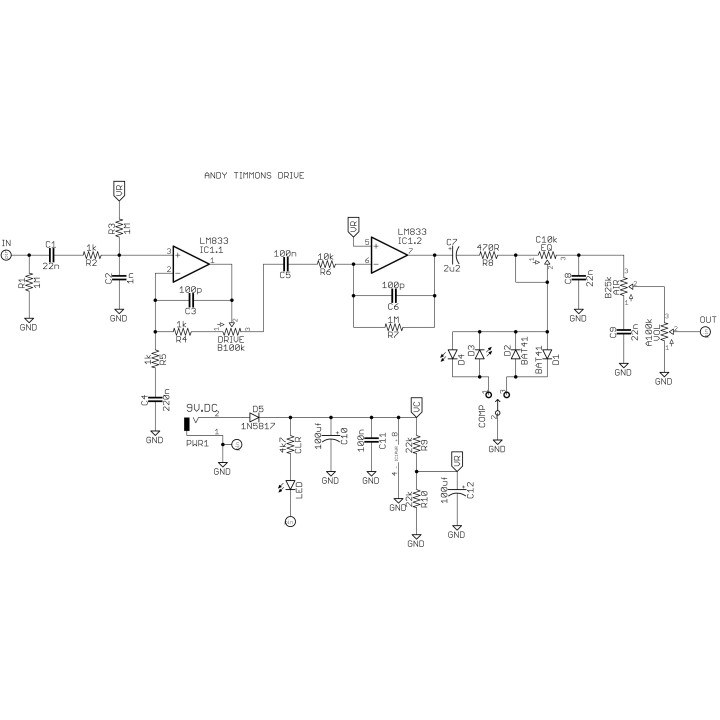

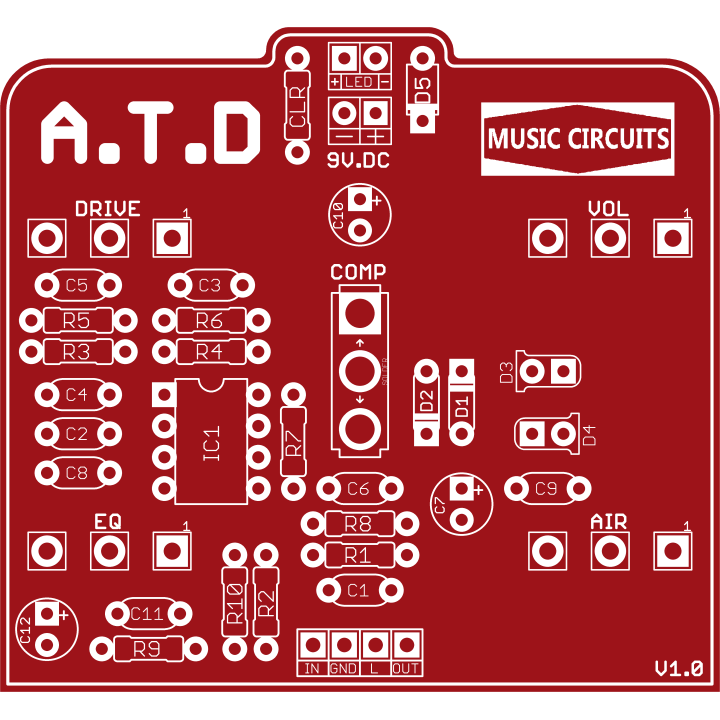

A.T.D (V1.0) Based on the JHS® ANDY TIMMONS DRIVE REVISION 01.09.2022

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

BOM: ANDY TIMMONS DRIVE (ATD)

Capacitors
C1 22n
C2 1n
C3 100p
C4 220n
C5 100n
C6 100p
C7 2u2
C8 22n
C9 22n
C10 100uf
C11 100n
C12 100uf

Diodes
D1 BAT41
D2 BAT41
D3 RED LED
D4 RED LED
D5 1N5817

IC's
IC1 LM833

Switch
COMP SPDT on-off-on

Resistors
R1 1M
R2 1k
R3 1M
R4 1k
R5 1k
R6 10k
R7 1M
R8 470R
R9 22k
R10 22k

Pots
VOL A100k
EQ C10k
DRIVE B100k
AIR B25k

  • Reference
    atdV1
  • In stock
    10 Items
